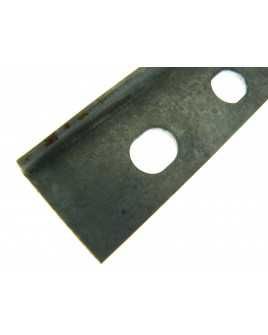

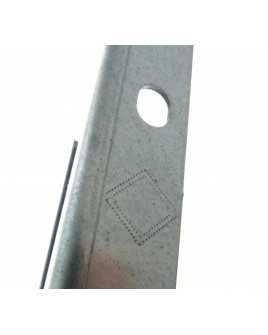

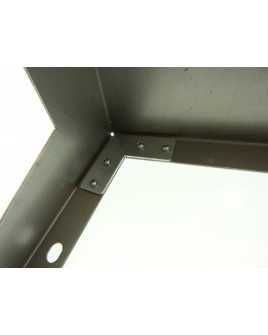

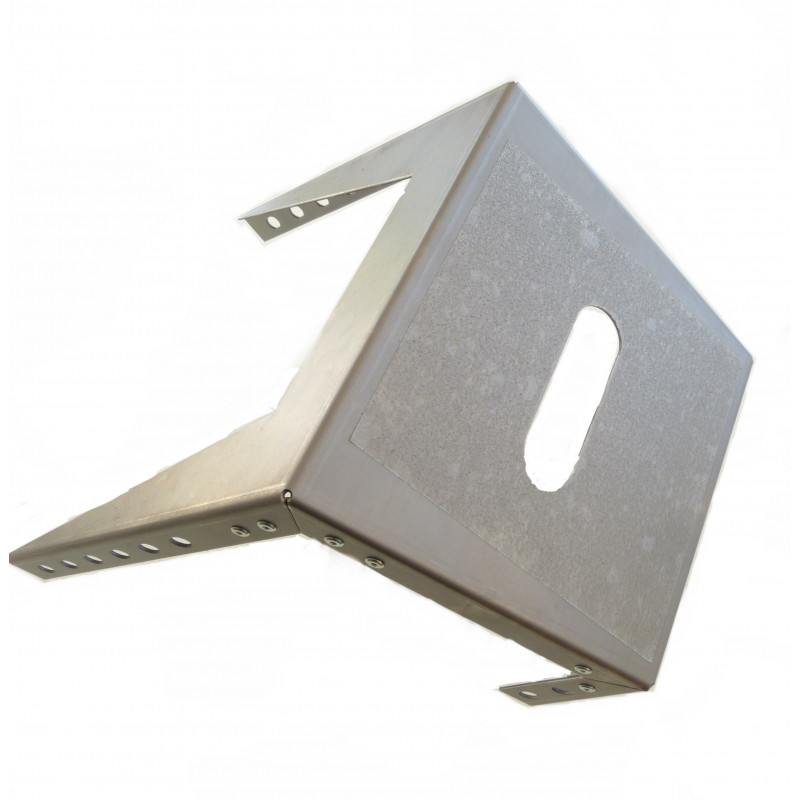

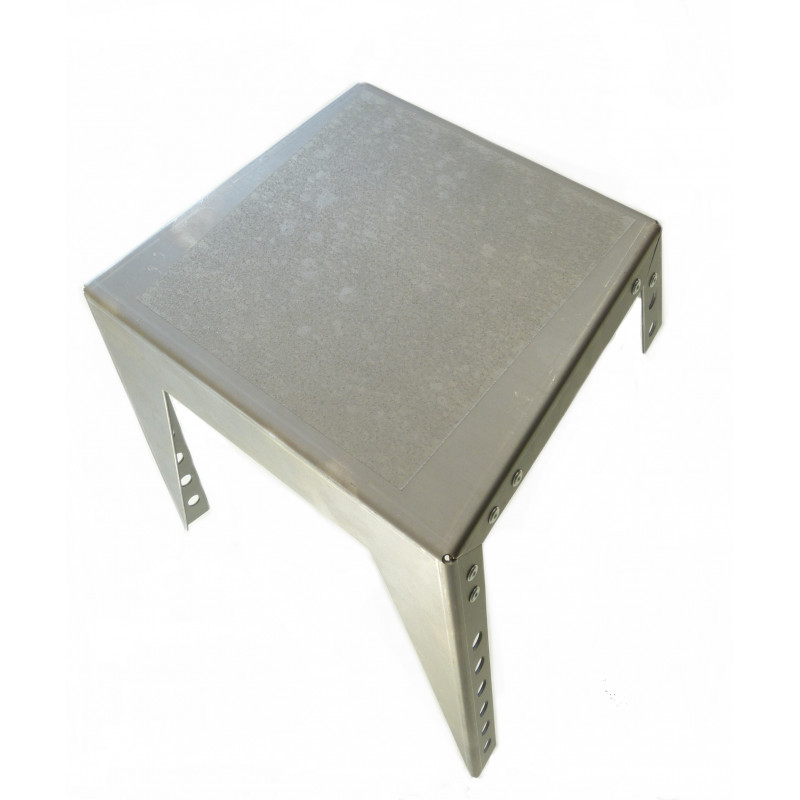

Gradino da scalo in acciaio zincato, serie Mini, profondità 200 mm, con pellicola antiscivolo

Gradino da scalo "MINI" in acciaio zincato, profondità 200 mm, superficie liscia con pellicola antiscivolo, con o senza impugnat

88,45 €

(88,45 € per pezzo)

Tasse incluse Shipping excluded

I
gradini da pendio del tipo "Mini" sono adatti a pendenze fino a 45 gradi! Se la pendenza è maggiore, è possibile utilizzare le barre di prolunga, se necessario.


Si prega di selezionare le dimensioni del gradino e se si desidera che il gradino sia dotato o meno di una maniglia incassata.

Superficie di appoggio (A x L)
  • 200 x 200 mm
  • 200 x 290 mm
  • 200 x 380 mm
impugnatura incassata
  • Sì
  • No
Peso
  • 1,6 kg
Lunghezza dell'asta
  • 420 mm (per gradini di larghezza 200 mm)
Codice articolo
  • SV020
Quantità
Non disponibile

La quantità minima per l'ordine di acquisto del prodotto è pari all'100.
Clicca qui per scoprire i prodotti senza quantità minima d'acquisto!

Grado per pendii in acciaio zincato, serie "MINI", profondità 200 mm, con o senza impugnatura incassata.

Si

prega di osservare le nostre avvertenze di sicurezza!

Il gradino è fornito in acciaio zincato. L'asta (un'asta filettata per ogni gradino è inclusa nel prezzo del gradino) è fornita in acciaio zincato. Le aste presentano una tolleranza di lunghezza di +/it/?controller=category&rewrite=-1 mm



  • Stato dell’articolo: nuovo

  • Materiale del gradino: acciaio zincato
  • Spessore del materiale del gradino: 2 mm

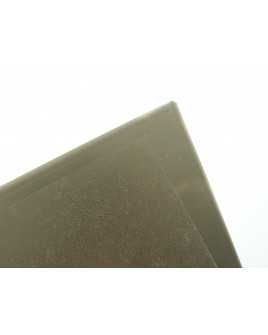

  • Superficie di appoggio: con pellicola antiscivolo, buona stabilità
  • Forma del gradino: il gradino è di forma trapezoidale. Il lato rivolto verso il pendio (lati corti) è più stretto rispetto al lato con i lati lunghi. I dettagli relativi alle specifiche tecniche sono disponibili qui!

  • Superficie rivestita:
  • Dimensioni del gradino 200 x 200 mm: 180 x 180 mm
  • Dimensioni del gradino 200 x 290 mm: 180 x 270 mm
  • Dimensioni gradino 200 x 380 mm: 180 x 360 mm

  • Materiale della barra: acciaio zincato (barra filettata)
  • Spessore della barra: 8 mm



Con i gradini per pendii (detti anche gradini da scarpata) potrete realizzare in modo semplice e veloce una scala da giardino su un pendio. Costruire gradini da esterno diventa così semplicissimo e potrete dare vita alle vostre idee per il giardino in pendenza.

SV020

Scheda tecnica

Tipo
"Mini"
Profondità
200 mm
Materiale
Acciaio zincato
Superficie
Pellicola antiscivolo
sicurezza nel camminare
3* (su un massimo di 4*)
Per pendenze
adatto fino a 35 gradi
adatto fino a 40 gradi
adatto fino a 45 gradi
Quantità minima d'ordine
Sì, si prega di tenere presente
Tipo di prodotto
Gradini di pendio
Sconto quantità
no

Riferimenti specifici

ean13
4260679921204
visualizzazione AR e 3D

Manufacturer´s data:

Ulrich M. Wilhelm
Hangstufen.de
Ottmarshauser Straße 53

86356 Neusäß

Germany


eMail: info@hangstufen.de

Notes and warnings



1. Installation


Landschaftsarchitektur steiles Gelände

Landschaftsarchitektur steiles Gelände





Assembly


Set crossbar







2. Safety

Use work gloves and safe, sturdy footwear when transporting, assembling and dismantling the steps.

During assembly, make sure that the slope steps are firmly anchored.  In any case, use the steel rod and make sure that it protrudes evenly on the right and left. Carry out a load test to check that the steps do not give way in the soil.

When assembling, make sure that the tread surface has a slight inclination towards the slope. Make sure that you do not get overweight and tip over to the front.

Only step on the steps with sturdy shoes.

Do not step on the steps during or after rain, wetness, ice or snow. When stepping onto the steps after rain, wetness, ice or snow, check that the steps do not give way in the ground and that there is good stability.


Landschaftsarchitektur steiles Gelände

Landschaftsarchitektur steiles Gelände






3. Use

The steps serve to improve the accessibility of slopes and embankments. The steps may only be used for this purpose (i.e. for the intended use).

Only healthy persons with unrestricted walking ability who are sure of their steps and footing may use the steps. If you are unsure, please refrain from using them!



4. Maintenance

Make sure that the steps are always free of dirt, soil, leaves, twigs and the like. This is the only way to ensure a safe step and a secure footing.



5. Liability

When handling the slope steps purchased, the manufacturer's information and instructions as well as the information on the safety instructions (see point 2. Safety and also enclosed in the box with the steps) must be observed. Defective products must be taken out of service immediately. The liability of Hangstufen.de and its vicarious agents is in any case limited to intent, gross negligence and breach of material contractual obligations. Liability for damage resulting from use of the purchased product contrary to its intended purpose is excluded. In the event of negligent breach of material contractual obligations, liability shall be limited to the foreseeable typical damage. Claims for injury to life, body and health as well as product liability claims remain unaffected by this.
